OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009394_19

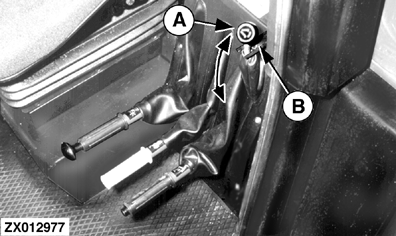

Auger in unloading position: Move lever (A) from neutral to up position.

Auger in transport position: Move lever (A) from neutral to down position.

IMPORTANT: Always secure lever (A) in transport position with safety strap (B).

NOTE: The road safety switch must be in field position to move the unloading auger.

ZX,OM1170009394 -19-01SEP97-1/1
