Unloading Auger Drive

IMPORTANT: Before engaging the unloading auger move the throttle lever to a low speed position.

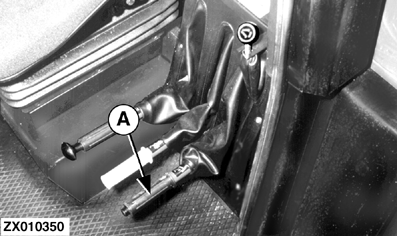

Move the lever (A) up to engage the auger.

Move the lever (A) down to disengage the auger.

ZX010350

ZX,OM1170009395 -19-01DEC97-1/1
