OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009396_19

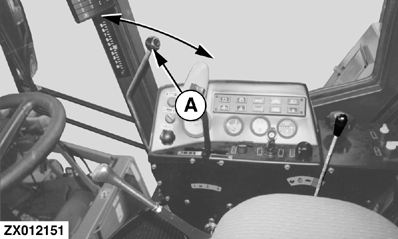

Shift control lever (A) to adjust reel fore-and-aft.

Push lever (A) forward to shift reel to the front.

Pull lever (A) back to shift reel to the rear.

NOTE: The road safety switch must be in field position to shift reel.

ZX,OM1170009396 -19-01SEP97-1/1
