Fan Speed Control Switch (Optional)

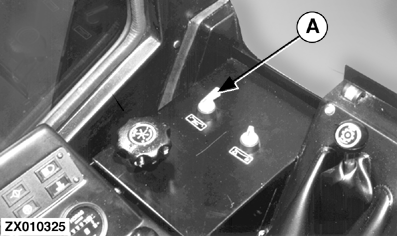

Turn control switch (A) clockwise to adjust fan speed from 550 to 1250 rpm.

ZX,OM1170009400 -19-01SEP97-1/2

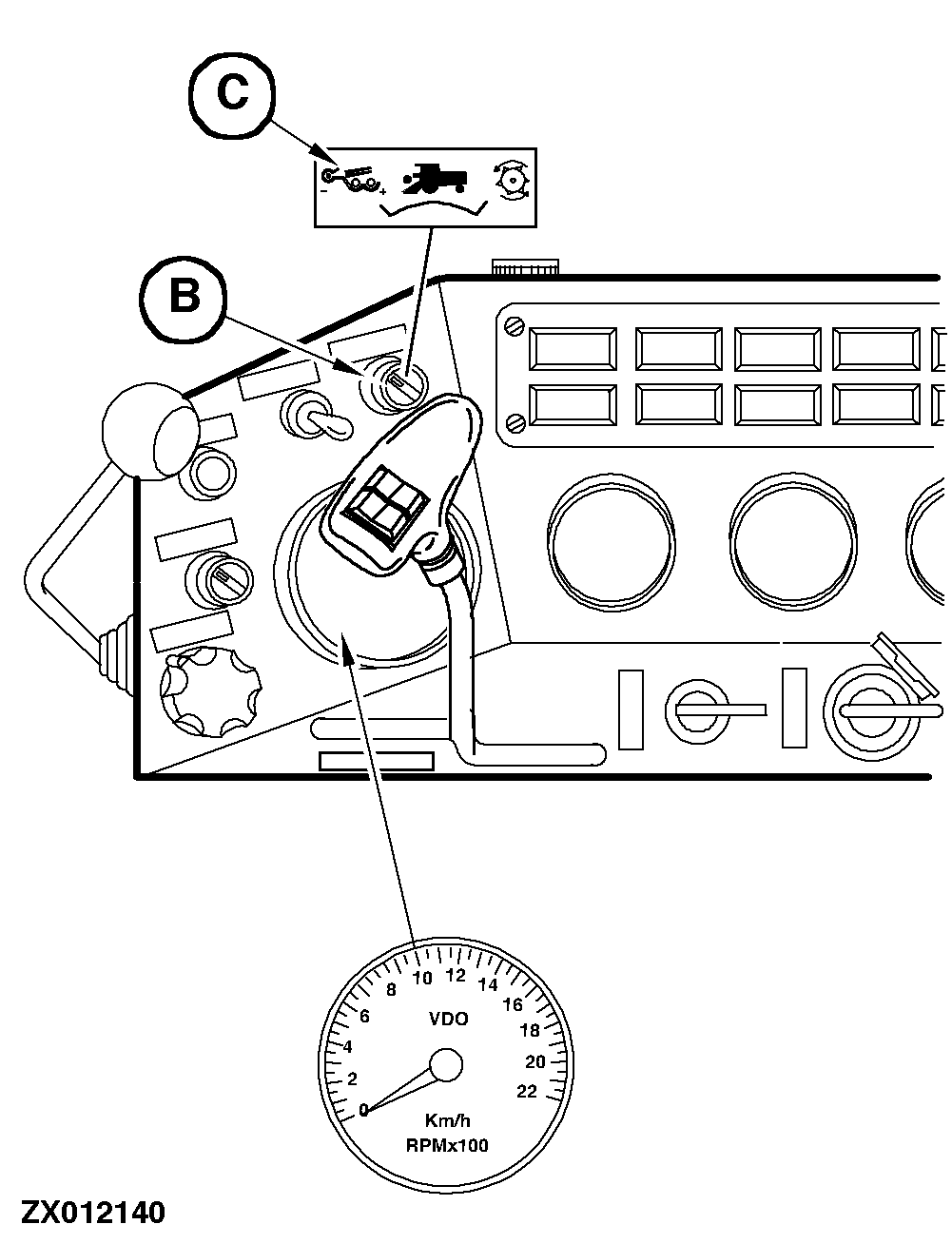

NOTE: Fan speed can be displayed if tachometer switch (B) is set to fan speed position (C). See "Speedometer/Cylinder And Fan Tachometer Switch" in this Section.

ZX,OM1170009400 -19-01SEP97-2/2
