Miscellaneous Controls-Outside Operator's Cab

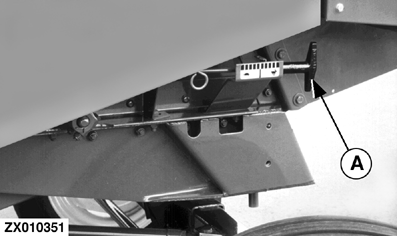

Fan Speed Control (Manual)


A-Speed Control Knob

ZX010351

ZX,OM1170009401 -19-01SEP97-1/4

Air Direction Control


A-Lower Baffle
B-Upper Baffle

ZX012141

ZX,OM1170009401 -19-01SEP97-2/4

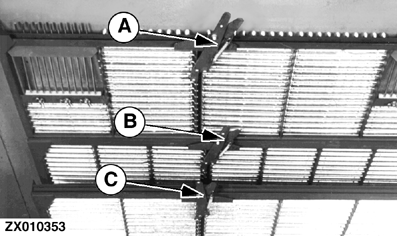

Screen Controls


A-Chaffer Extension Control Lever
B-Upper Screen Adjustment Lever (chaff)
C-Lower Screen Adjustment Lever (grain)

ZX010353

ZX,OM1170009401 -19-01SEP97-3/4

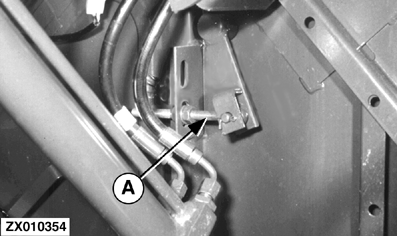

Concave Extension Adjustment


A-Adjusting Screw

ZX010354
