OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009405_19

causym CAUTION: Always drive with the steering column locked to avoid accidents.

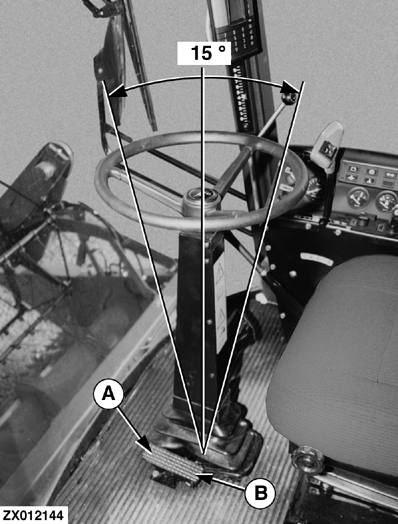

To enhance operator comfort the steering column can be adjusted within a 15° arc.

Press the top (A) of the locking pedal to unlock the steering column.

Select the most comfortable position and press the bottom (B) of the pedal to lock it.

ZX,OM1170009405 -19-01SEP97-1/1
