IMPORTANT: Clean the outside of the tank before checking the hydraulic oil level.

Main Tank

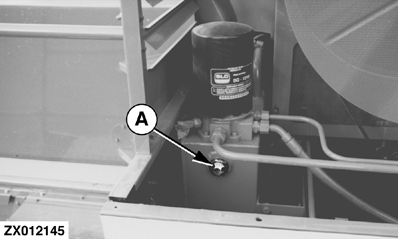

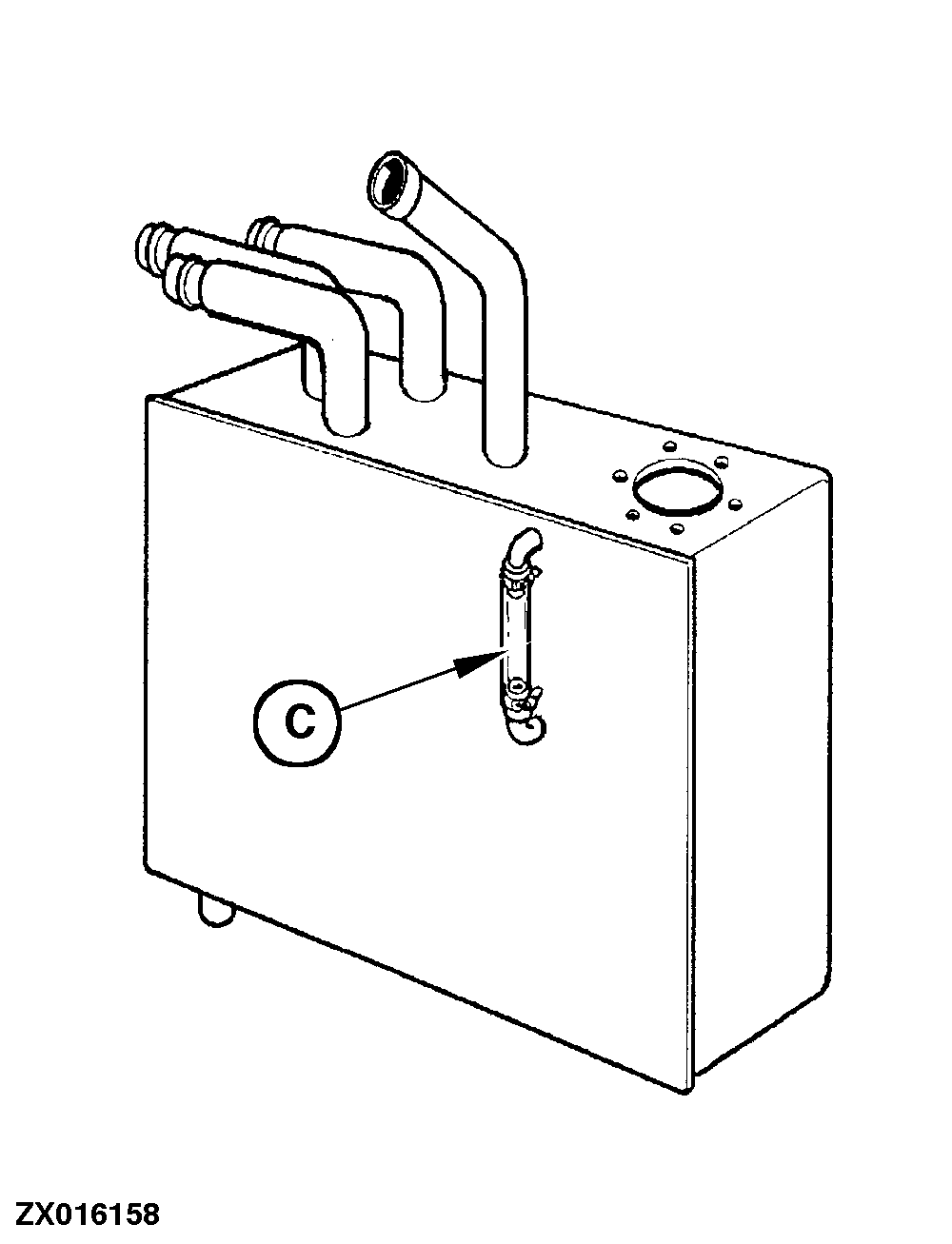

Lower the cutting platform to the ground. The oil level should be in the center of the tank sight glass (A) or oil level scale (C).

ZX,OM1170009406 -19-01DEC98-1/2

Hydrostatic Transmission Tank

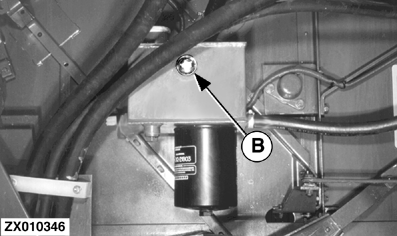

The hydraulic oil level should be in the center of the tank sight glass (B).

ZX,OM1170009406 -19-01DEC98-2/2
