Turn On Ignition

Press key into switch and turn to position I. The following indicator lights will glow:

  • Alternator indicator light.
  • Engine oil pressure indicator light.
  • Parking brake indicator (flashing) light (only when a transmission gear is engaged).

In addition, the acoustical warning system will be activated:

  • Should parking brake be applied with gear engaged.
  • If coolant temperature is too high.
  • If straw warning device is activated.

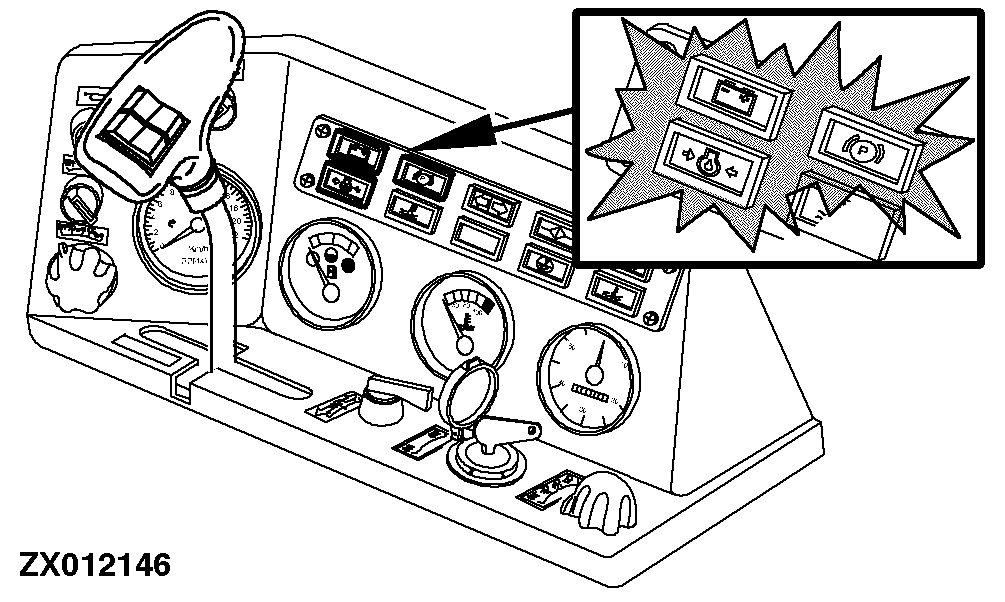

ZX012146

ZX,OM1170009409 -19-01SEP97-1/1
