Stopping the Engine

IMPORTANT: Do not stop the engine immediately after operating under load, especially when it is equipped with a turbocharger. Allow the engine to run at slow idle for several minutes so that the oil can cool the turbocharger components. Stopping the engine when the turbocharger is turning at high speed means the impeller will continue to spin without lubricating oil. This lack of lubrication will damage the bearings and destroy the turbocharger.

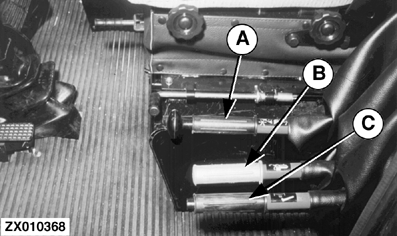

    Release the following levers:

  • Header drive lever (A).
  • Separator drive lever (B).
  • Unloader drive lever (C).

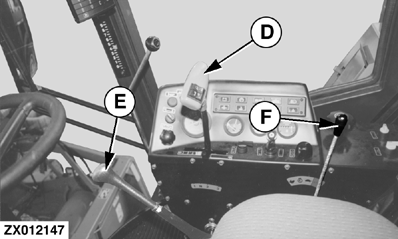

Put forward/reverse lever (D) in neutral.

Put gear shift lever (E) in neutral.

Move the throttle (F) to slow idle (turtle).

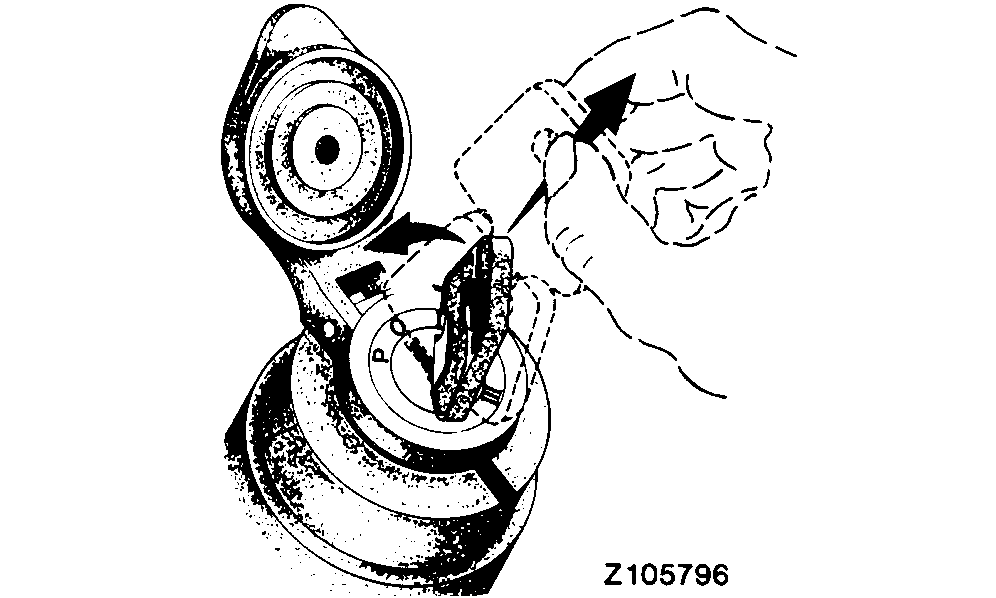

Turn starter switch to position "0".

causym CAUTION: Always remove key before leaving operator's cab.


A-Header Drive Lever
B-Separator Drive Lever
C-Unloader Drive Lever
D-Forward/Reverse Lever
E-Shift Lever To Neutral Position
F-Throttle To Slow Idle

ZX010368
ZX012147
Z105796

ZX,OM1170009410 -19-01SEP97-1/1
