Separation Between Concave and Cylinder

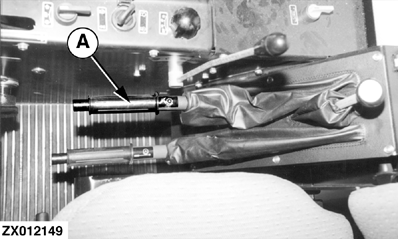

The adjustment lever is on the operator's right.

Lower the lever (A) to increase the separation.

Lift the lever (A) to reduce the separation.

ZX,OM1170009412 -19-01SEP97-1/2

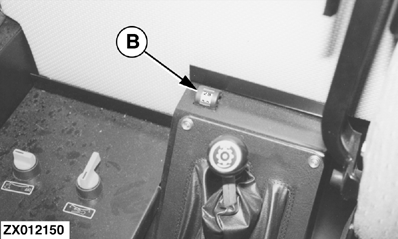

Adjustment can be read at separation indicator (B) located on the operator's left.

ZX,OM1170009412 -19-01SEP97-2/2
