OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009415_19

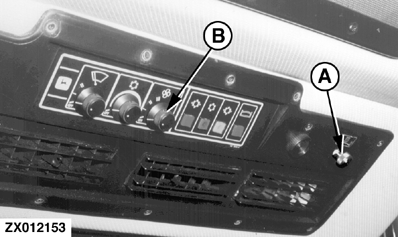

Turn switch (A) clockwise to switch on heater system (heater valve will open).

Turn switch (A) counterclockwise to switch off heater system (heater valve will close).

Use air conditioning fan switch (B) to regulate blowing effect. See "Rotary Switch-Air Conditioning" in this Section.

ZX,OM1170009415 -19-01SEP97-1/1
