OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009423_19

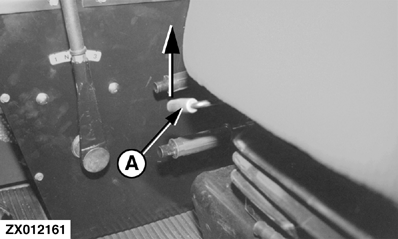

Pull up locking lever (A) and slide seat forward or backward.

ZX,OM1170009423 -19-01SEP97-1/2

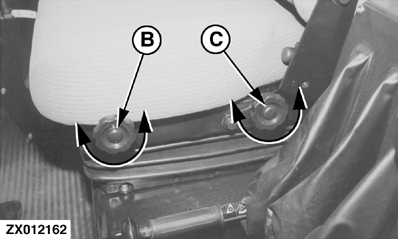

The height of the seat can be adjusted individually at the front and rear. Use handwheel (B) for front adjustment and handwheel (C) for the rear.

NOTE: Handwheels (B)-(C) provide three positions.

ZX,OM1170009423 -19-01SEP97-2/2
