Slope Master System

When operating the combine on a slope, special inserts at the left-hand and right-hand sides of the chaffer extension collect the grain rolling across the separator and return it via the tailings elevator.

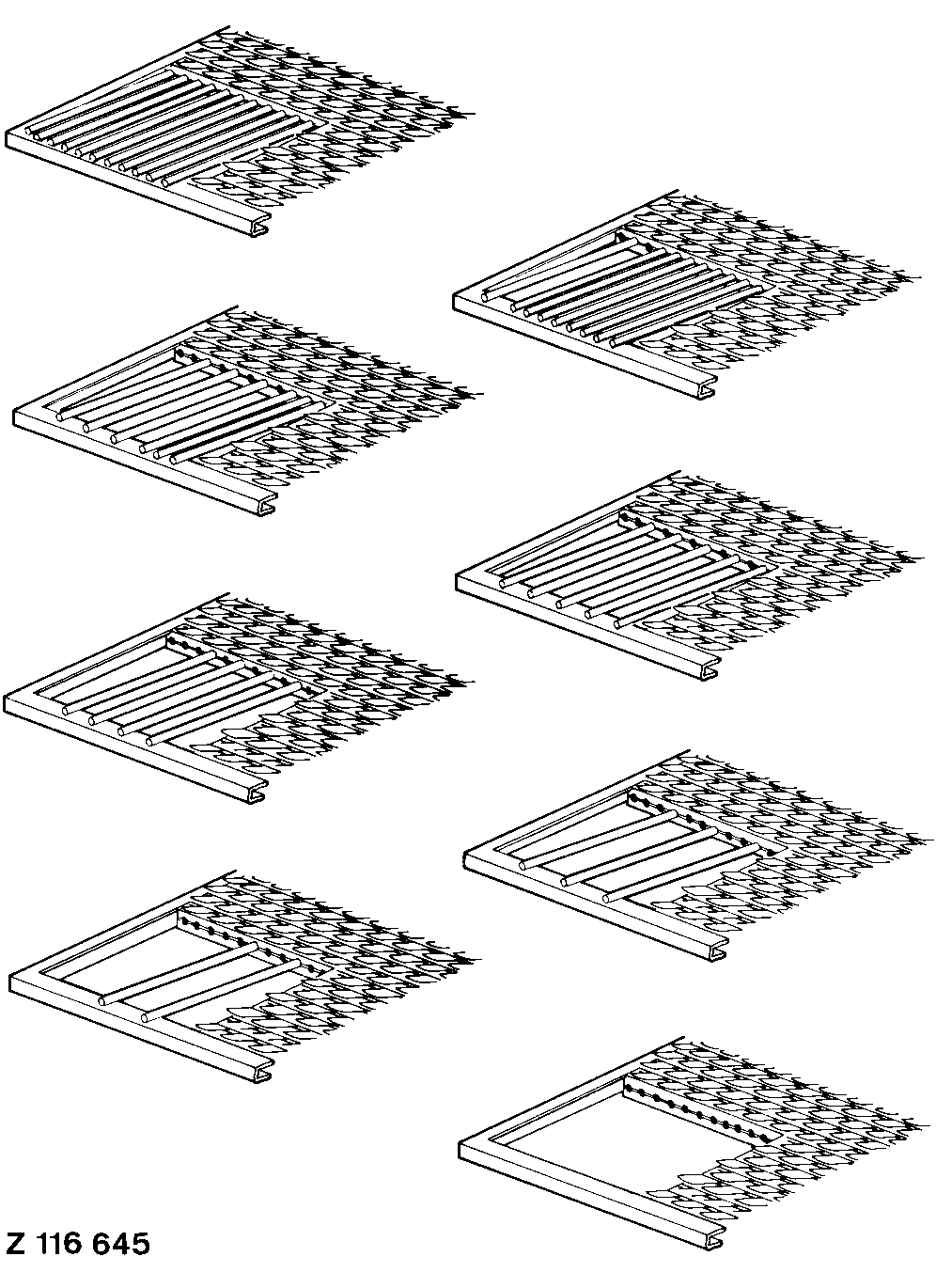

Vary the openings in the inserts to suit the harvesting conditions, type of crop and combine tilt by adding or removing fingers. The combine is delivered from the factory with 11 fingers installed in the chaffer extension.

Any change in the number of fingers primarily affects the amount of tailings; i.e. if no fingers or only a few fingers are installed, a high percentage of tailings will occur; if all the fingers are installed, very little tailings occur.
