OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009722_19

Cylinder Bars

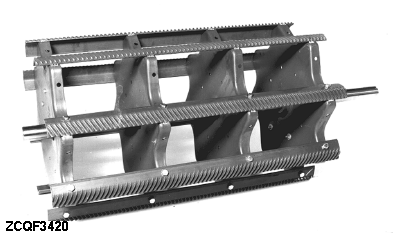

The cylinder has scraper bars with teeth alternatingly directed to the right and left. If a cylinder bar needs to be changed the opposite bar will also have to be changed in order to avoid unbalancing the cylinder.

To remove the bars, grind off and reweld in the same manner.

Tighten the bar mounting bolts to 78 N·m (57 lb-ft).

IMPORTANT: After changing bars retighten the mounting bolts after the first five hours of operation.

ZX,OM1170009722 -19-15SEP97-1/1
