Rotating Cylinder By Hand

causym CAUTION: Stop the engine and remove the ignition key before turning the cylinder by hand.

Open the covers on the grain elevator and cylinder front inspection port.

ZX,OM1170009723 -19-15SEP97-1/2

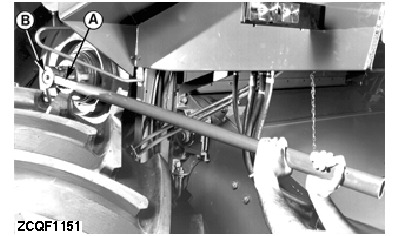

Insert wrench (A) in slot (B) on the cylinder shaft. The wrench is stored in the tool box and the wrench extension is located in front of the clean grain elevator housing.

ZX,OM1170009723 -19-15SEP97-2/2
