OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009724_19

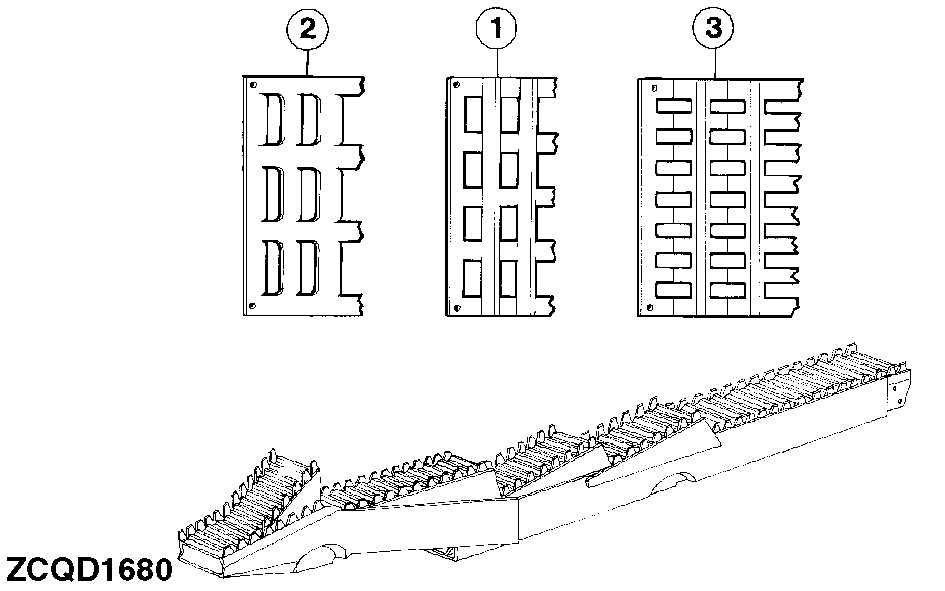

Straw Walker Types

1. Straw walkers with grids having transverse rectangular openings are indicated for small grains such as wheat, etc.

2. Straw walkers with grids having "frog mouth" openings are indicated for large grains such as corn and sorghum. They are supplied with the standard version combine.

3. Straw walkers with grids having longitudinal openings are especially suited for wheat and peas.

All the grids are replacable from the front to the rear of the straw walkers to permit rapid conversion to handle various types of crops.

ZX,OM1170009724 -19-15SEP97-1/1
