OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009725_19

Chaffer Extension Inserts (Slope Master)

When working in hilly terrain material accumulates on the sides of the chaffer and its extension, making it difficult to separate grain and increasing losses.

To avoid losses, openings located on both sides and behind the chaffer extension collect any material not totally separated.

These openings can be increased or reduced depending on terrain and crop conditions.

ZX,OM1170009725 -19-15SEP97-1/2

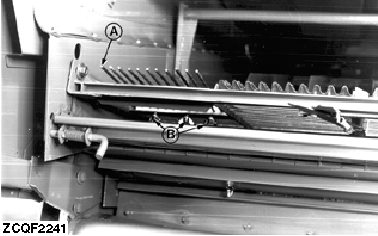

Openings are varied by removing or inserting rods (A) after loosening wing nuts (B).

NOTE: Combine is delivered from the factory with 11 rods installed.

ZX,OM1170009725 -19-15SEP97-2/2
