OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009727_19

The front of the pan (under the concave) can be removed for quick and easy cleaning.

ZX,OM1170009727 -19-15SEP97-1/2

NOTE: Clean the pan daily.

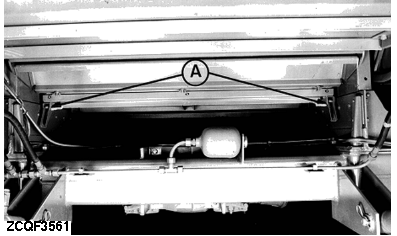

1. Push latches (A) by hand.

2. Pull out the pan to the front and remove it.

ZX,OM1170009727 -19-15SEP97-2/2
