Adjusting Air Flow Direction

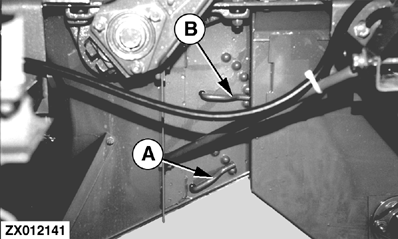

NOTE: For soy beans, wheat and corn, start with the lower baffle (A) in the first position (from the bottom) and the upper baffle (B) in the second position (from the bottom).

IMPORTANT: To facilitate adjustment, first adjust the baffles and then regulate fan speed.

A-Lower Baffle
B-Upper Baffle

ZX,OM1170009728 -19-15SEP97-1/1
