OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009729_19

Adjusting Fan Speed

This adjustment is made by carefully walking behind the rear wheel and verifying results at the same time.

ZX,OM1170009729 -19-15SEP97-1/3

Without Electrical Fan Speed Adjustment:

Speed is increased by turning the handle (A) clockwise. Turn the handle counterclockwise to reduce speed.

ZX,OM1170009729 -19-15SEP97-2/3

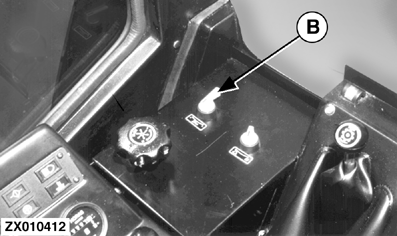

With Electrical Fan Speed Adjustment:

Speed is increased by turning the rotary switch (B) clockwise. Turn the switch counterclockwise to reduce speed.

IMPORTANT: If fan speed cannot be adjusted within specified range, re-adjust variable fan drive motor limit switches. See "Service-Electrical System" Section.

ZX,OM1170009729 -19-15SEP97-3/3
