Engaging Straw Chopper

causym CAUTION: Before engaging the straw chopper, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.

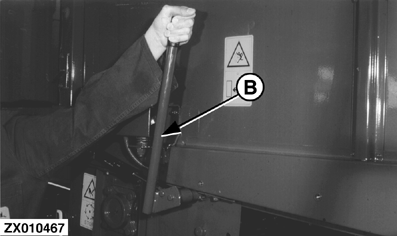

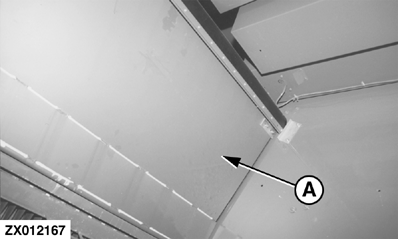

Before engaging the straw chopper, fold deflector sheet (A) in the straw hood to the front by actuating lever (B).

ZX,OM1170009734 -19-15SEP97-1/2

Electro-Magnetic Clutch Switch

Switch (A) actuates the electro-magnetic clutch of the straw chopper drive. Switch (A) is activated when the straw deflector sheet is swung to the front.

ZX,OM1170009734 -19-15SEP97-2/2
