Moving Straw Distributor into Operating Position

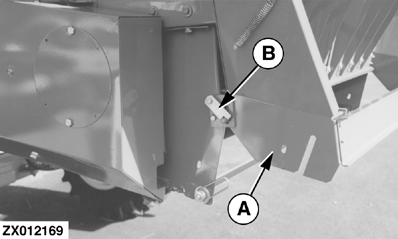

Release latch (B) on each side to unlock straw distributor (A) from its transport position.

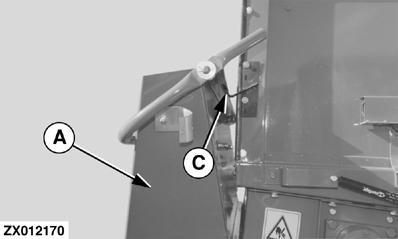

Lift straw distributor (A) out of brackets (C) and move it down into operating position.

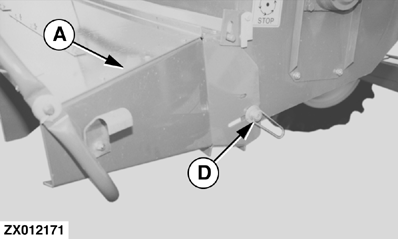

Attach straw distributor (A) by means of attaching screws (D), then tighten securely on both sides.


A-Straw Distributor
B-Latch
C-Bracket
D-Attaching Screw

ZX012169
ZX012170
ZX012171

ZX,OM1170009736 -19-15SEP97-1/2

Relocating Guard Rail

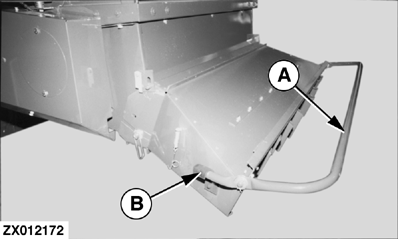

Disconnect retaining springs and swing guard rail (A) as shown.

Secure guard rail (A) in this position with straps (B).
