OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009737_19

Adjusting Straw Deflectors

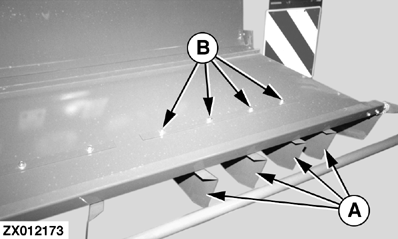

Each straw deflector (A) can be adjusted individually. First slacken off self-locking nut (B), then adjust straw deflectors (A) as required to regulate width of chopped material.

NOTE: The closer the top of deflectors (A) are to the middle, and the further apart they are at the bottom, the wider the spread of chopped material.

ZX,OM1170009737 -19-15SEP97-1/1
