OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009738_19

Adjusting Counter-Knives

The length of chopped material can be modified by pivoting the counter-knives to a different angle.

IMPORTANT: Counter-knives should only be moved inward as far as absolutely necessary to prevent waste of engine power.

Recommended counter-knife positions:

1. Counter-knives horizontal for dry straw.
2. Counter-knives at slight angle for damp straw and weeds.
3. Counter-knives at extreme angle for rape and pea straw.

ZX,OM1170009738 -19-01DEC98-1/3

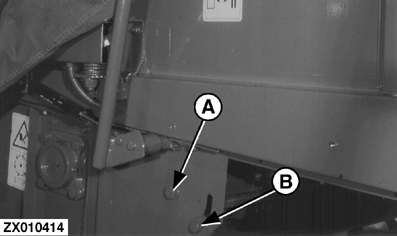

To adjust the counter-knives, slacken off screws (A) and (B) at both sides.

ZX,OM1170009738 -19-01DEC98-2/3

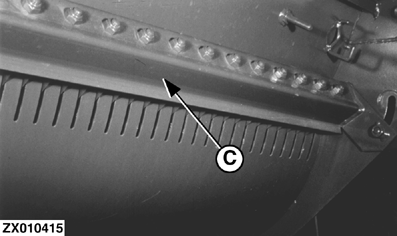

Adjust the angle of the counter-knives by pulling on crossmember (C).
