Straw Chopper Electro-Magnetic Clutch Switches

For safe function, two switches are installed:

ZX,OM1170009741 -19-15SEP97-1/3

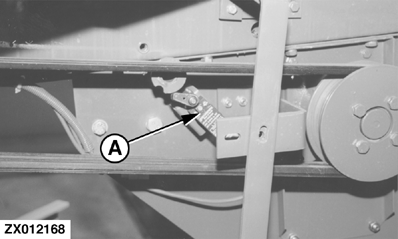

Magnetic switch (A) on suspension of straw deflector sheet.

ZX,OM1170009741 -19-15SEP97-2/3

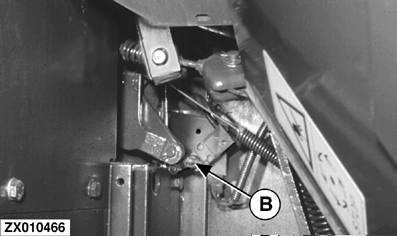

Switch (B) on separator lever linkage.

NOTE: The electro-magnetic clutch will function only when both switches are engaged. In the event of malfunctions in the electrical system, consult your John Deere dealer.
