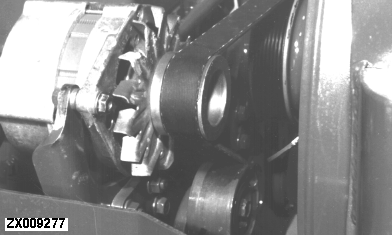

Refer to "Checking Belt Tensioner Spring Tension and Belt Wear" to determine if V-belt needs replacing.

1. Release tension on belt.

2. Remove V-belt from pulleys and discard belt.

3. Install new belt, be sure that belt is correctly seated in all pulley grooves.

4. Apply tension to belt with tensioner.

5. Start engine and check belt alignment.
