OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009758_19

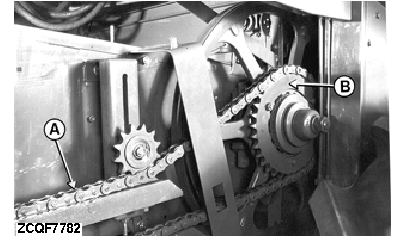

Remove the header drive shield. Then loosen the header drive chain (A) and remove sprocket (B) from the feeder house upper shaft.

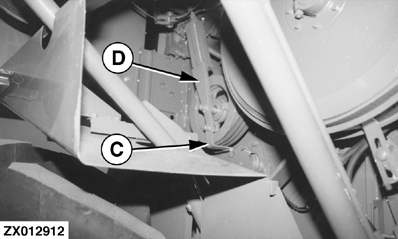

Remove guide (C) from belt idler (D).

A-Header Drive Chain
B-Sprocket
C-Guide
D-Belt Idler

ZX,OM1170009758 -19-15SEP97-1/4

Remove Mounting Bolts

Remove mounting bolts (A) and locking bolt (B).

ZX,OM1170009758 -19-15SEP97-2/4

Remove Pulley

causym CAUTION: This pulley weighs about 40 kg (88 lb) and is difficult to handle.

Remove beater pulley (B).

ZX,OM1170009758 -19-15SEP97-3/4

Installing Drive Belt

Reverse the above sequence to install a new belt.

A-Hub
B-Drive Belt

ZX,OM1170009758 -19-15SEP97-4/4
