Adjusting Threshing Unit Belt Guide

With the lever engaged, adjust belt guide (A) so that there is 2-5 mm (0.08 to 0.2 in.) of play between the tightened belt and the guide. Slide the slotted supports (B) to adjust.

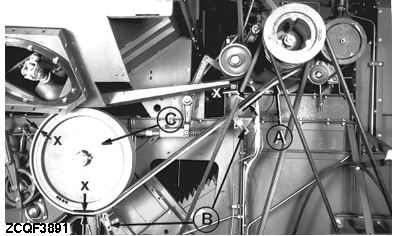

A-Belt Guide
B-Slotted Support (3)
C-Pulley
X-2 to 5 mm (0.08 to 0.2 in.) Play

ZX,OM1170009759 -19-15SEP97-1/1
