Adjusting Unloading System Drive

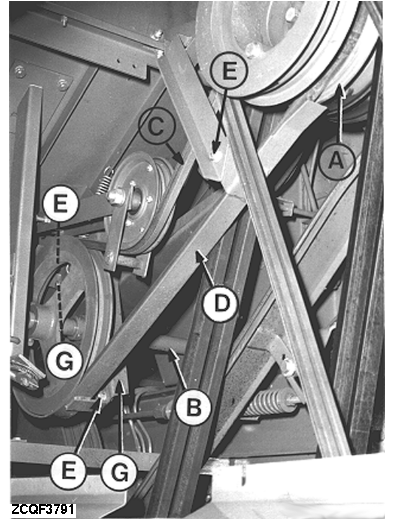

The system is driven by belt (C) from the engine pulley (A) and the jackshaft (B).

Adjust belt guide (D) with supports (G) after loosening bolts (E) to obtain uniform spacing of 3 to 5 mm (0.1 to 0.2 in.) between the belt and guide with the belt tightened.

A-Engine Pulley
B-Jackshaft
C-Belt
D-Belt Guide
E-Bolts
G-Supports

ZX,OM1170009761 -19-15SEP97-1/2

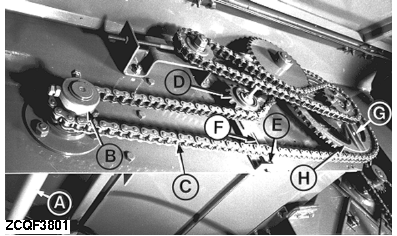

Sprocket (B) is on jackshaft (A) on the right side of the combine. Chain tension is adjusted with idler sprocket (D). Loosen hex nut (E) and position the idler sprocket with bolt (F).

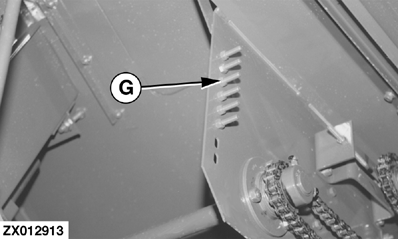

IMPORTANT: Bolt (G) is a shear bolt which will break in order to protect the drive system. Always replace with original JOHN DEERE part. Tighten it enough to bring the drag arm smoothly in contact with sprocket (H). Tighten shear bolt (G) using a screwdriver while holding lock nut with a spanner.

NOTE: Six replacement shear bolts (G) are supplied with the combine.

A-Jackshaft
B-Sprocket
C-Chain
D-Sprocket
E-Hex Nut
F-Tightener Bolt
G-Shear Bolt
H-Unloading Auger Shaft Sprocket
