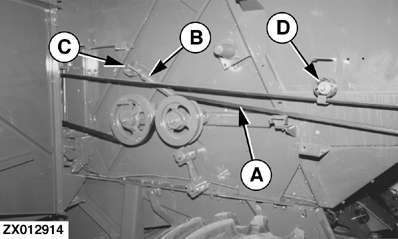

Belt (A) is tightened by spring (B). Use bolt (C) to adjust.
NOTE: Pulley (D) is not a tightener. Its only function is to prevent belt deviation or oscillation.
A-Drive Belt B-Tension Spring C-Adjusting Bolt D-Pulley
ZX,OM1170009762 -19-15SEP97-1/1
