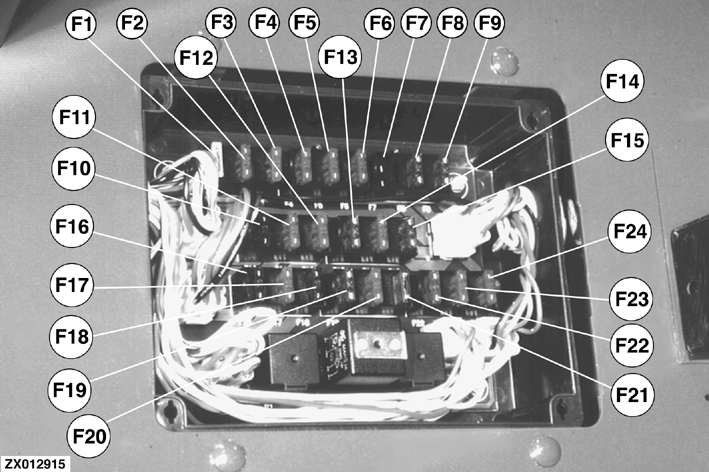

F1-25 A Fuse, Cold Weather Starting Aid
F2-10 A Fuse, Work Light, Grain Tank
F3-10 A Fuse, Full-Beam Headlight LH
F4-10 A Fuse, Full-Beam Headlight RH
F5-10 A Fuse, Dimmed Headlight LH
F6-10 A Fuse, Dimmed Headlight RH
|
F7-10 A Fuse, Spare
F8-10 A Fuse, Cab Worklight RH
F9-10 A Fuse, Cab Worklight LH
F10-7.5 A Fuse, Grain Tank Lighting
F11-15 A Fuse, Cab Work Lights RH
F12-15 A Fuse, Cab Work Lights LH
F13-10 A Fuse, Stop Lights, Back Buzzer Warning
|
F14-10 A Fuse, Engine Shut-Off Solenoid (Fuel Pump Solenoid)
F15-15 A Fuse, Header/Reel Height System
F16-7.5 A Fuse, Start Relay
F17-10 A Fuse, Radio Memory Function
F18-7.5 A Fuse, Light Bar, Instruments
F19-15 A Fuse, Turn Signal, Hazard Warning Lights
|
F20-10 A Fuse, Accoustical Warning System
F21-15 A Fuse, Beacon Light
F22-5 A Fuse, Instrument Lighting
F23-10 A Fuse, Clearance Light RH, Front
F24-10 A Fuse, Clearance Light LH, Front
|
