OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OM1170009765_19

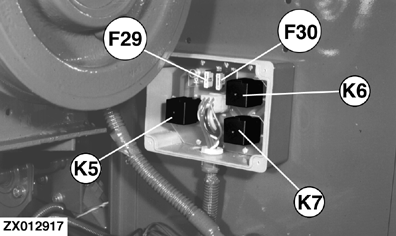

Straw Chopper and Fan Motor Control Box

F29-20 A Fuse, Straw Chopper Magnetic Clutch
F30-25 A Fuse, Fan Speed Adjustment
K5-Relay, Straw Chopper Magnetic Clutch
K6-Relay, Fan Speed Motor (Slow)
K7-Relay, Fan Speed Motor (Fast)

ZX,OM1170009765 -19-15SEP97-1/1
