Mechanical Fan Drive Motor Adjustment

In the event of failure of the electric fan speed adjusting system, fan speed may be adjusted mechanically.

Proceed as follows:

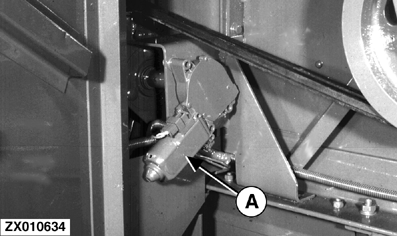

Loosen attaching screws (B) and remove electric motor (A).

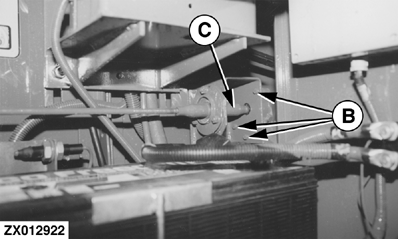

Using suitable pliers, adjust spindle (C) as necessary.

Reinstall motor (A) to maintain spindle setting.
