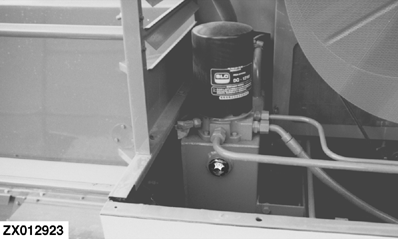

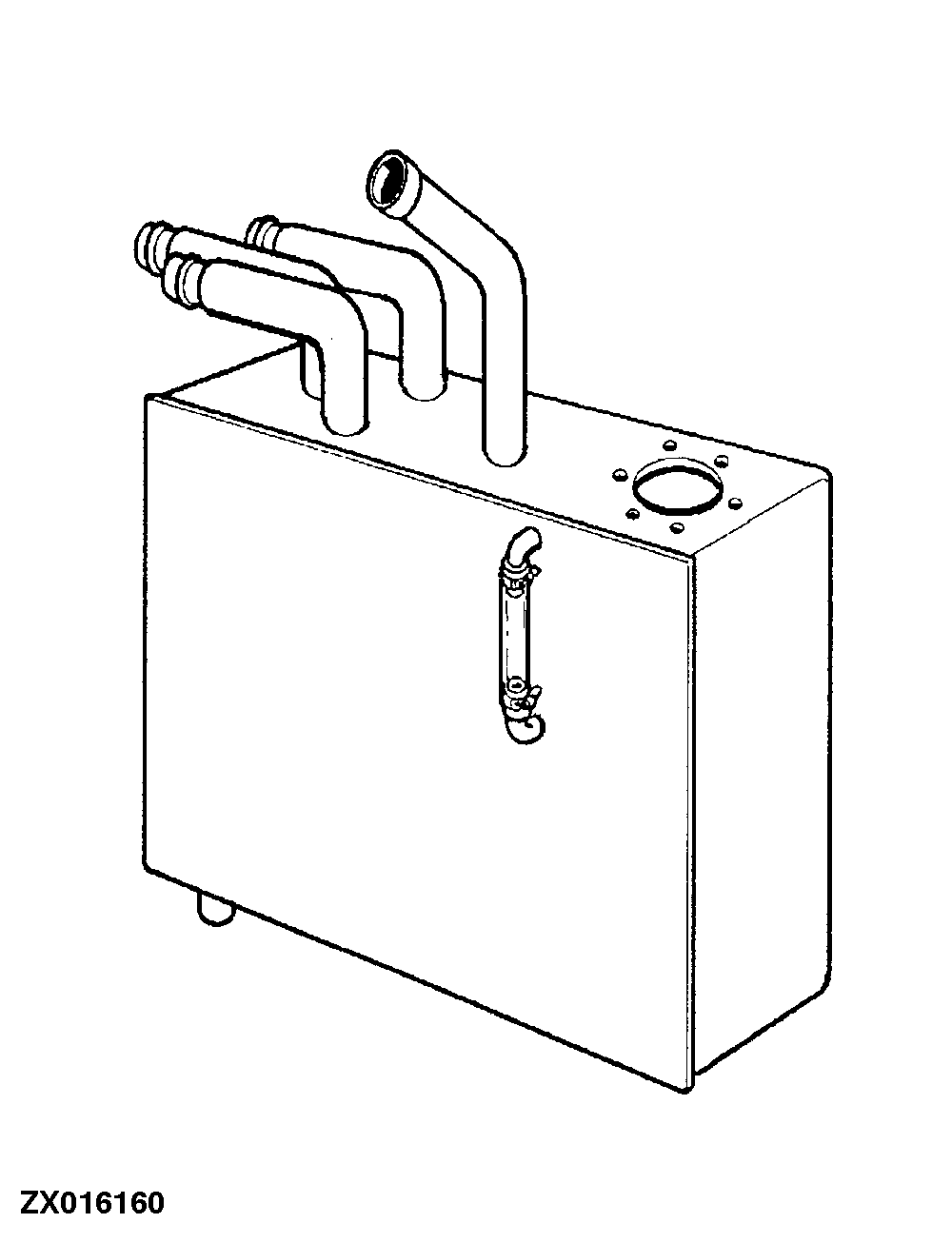

Checking Hydraulic System Reservoir Oil Level

Check the hydraulic reservoir oil level periodically. If necessary, add the recommended oil (see "Fuel, Lubricants, Coolant and Capacities" Section).

NOTE: Before checking the level, lower the cutting platform to the ground and place the unloading auger in the transport position and lower the reel.

ZX,OM1170009771 -19-01DEC98-1/1
