Hydraulic Reverser

IMPORTANT: When straw chopper is running, operate combine until the chopper is free from obstructions before disengaging separator drive.

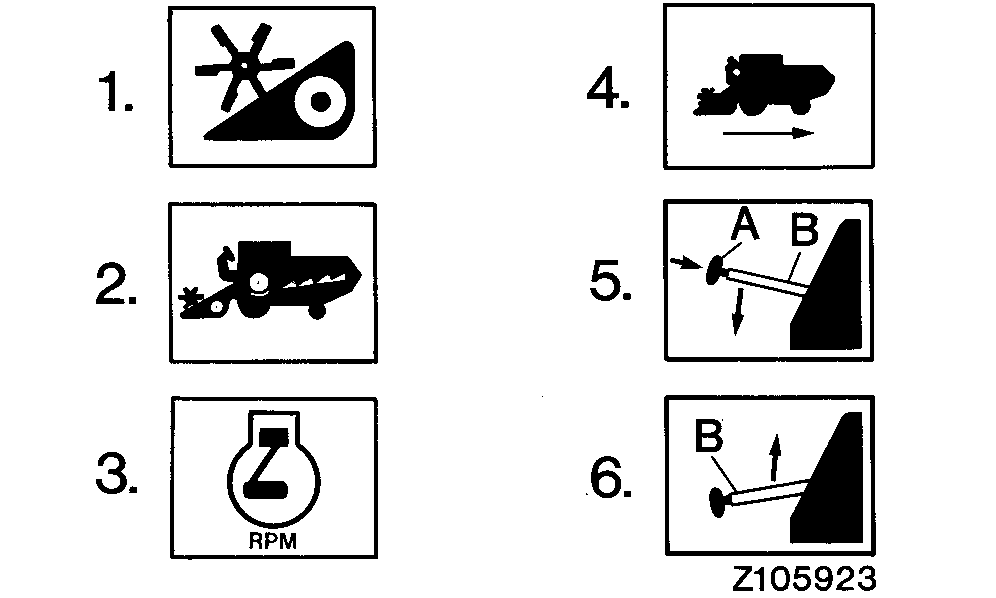

1-2. With obstructions in header or feeder house, immediately disengage header drive.

3. Reduce engine speed.

4. Reverse combine approx. 1 to 2 meters (3 to 6 ft.).

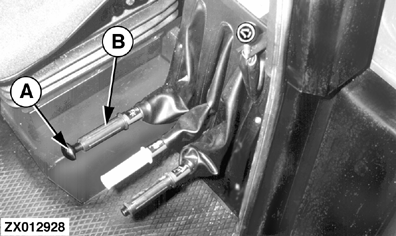

5. Disengage quick-release button (A) on header throw out lever (B) and press lever down against stop. Hold in this position for the period of reversing (feeder house and header are reversed with this process).

6. As soon as feeder house and header are free from obstructions, pull lever (B) upward to neutral position.
