Dimensions, 1170 Combines

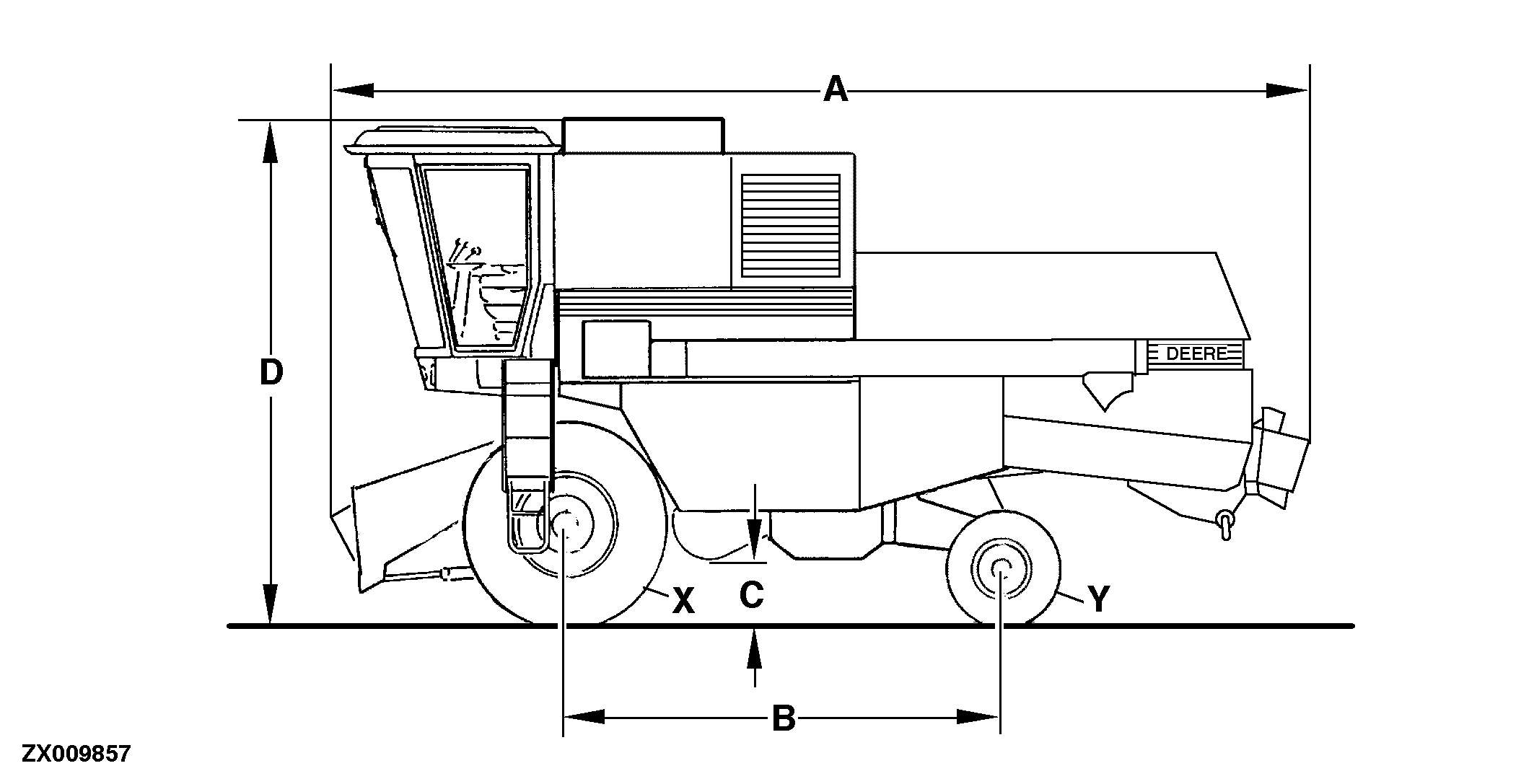

ZX009857

Side View


A-Overall Length
B-Wheel Base


C-Ground Clearance
D-Overall Height


X-Front Tires


Y-Rear Tires

  X Y A B C D
1170 23.1-30 10.5-80-18 7930 mm
(26.02 ft)		 3574 mm
(11.72 ft)		 530 mm
(1.74 ft)		 3915 mm
(12.84 ft)
  28.1-26 10.5-80-18 7930 mm
(26.02 ft)		 3574 mm
(11.72 ft)		 480 mm
(1.57 ft)		 3865 mm
(12.68 ft)
  23.1-30 12.4-24 7930 mm
(26.02 ft)		 3574 mm
(11.72 ft)		 480 mm
(1.57 ft)		 3865 mm
(12.68 ft)
  28.1-26 12.4-24 7930 mm
(26.02 ft)		 3574 mm
(11.72 ft)		 480 mm
(1.57 ft)		 3865 mm
(12.68 ft)
  620-75 440-65 7930 mm
(26.02 ft)		 3574 mm
(11.72 ft)		 493 mm
(1.61 ft)		 3911 mm
(12.83 ft)
  750-65 440-65 7930 mm
(26.02 ft)		 3574 mm
(11.72 ft)		 493 mm
(1.61 ft)		 3861 mm
(12.66 ft)



ZX,OM1170012836 -19-15DEC98-1/2

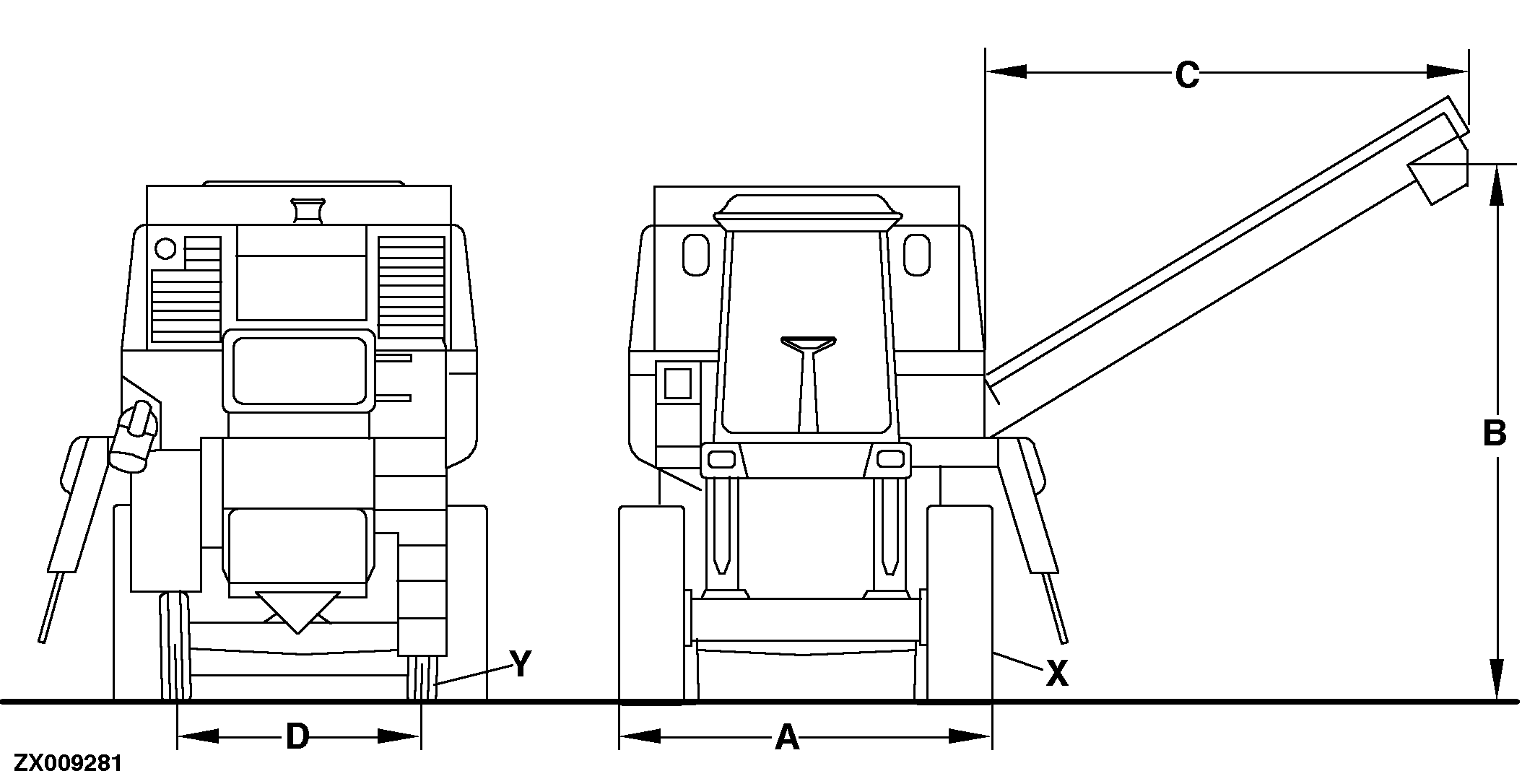

ZX009281

Rear View/Front View


A-Front Axle Width
B-Max. Discharge Height


C-Outreach Of Unloading Auger


D-Width Of Rear Axle
X-Front Tires


Y-Rear Tires

  X Y A B C D
1170 23.1-30 10.5/80-18 3290 mm
(10.79 ft)		 4198 mm
(13.77 ft)		 3713 mm
(12.18 ft)		 2490 mm
(8.16 ft)
  28.1-26 10.5/80-18 3613 mm
(11.85 ft)		 4148 mm
(13.61 ft)		 3713 mm
(12.18 ft)		 2490 mm
(8.16 ft)
  23.1-30 12.4-24 3290 mm
(10.79 ft)		 4198 mm
(13.77 ft)		 3713 mm
(12.18 ft)		 2370 mm
(7.77 ft)
  28.1-26 12.4-24 3613 mm
(11.85 ft)		 4148 mm
(13.61 ft)		 3713 mm
(12.18 ft)		 2370 mm
(7.77 ft)
  620-75 440-65 3295 mm
(10.81 ft)		 4194 mm
(13.75 ft)		 3713 mm
(12.18 ft)		 2370 mm
(7.77 ft)
  750-65 440-65 3650 mm
(11.97 ft)		 4144 mm
(13.59 ft)		 3713 mm
(12.18 ft)		 2370 mm
(7.77 ft)



ZX,OM1170012836 -19-15DEC98-2/2
