Cutting and Harvesting Unit

This unit cuts and harvests the crop and then passes it to the cylinder and concave.

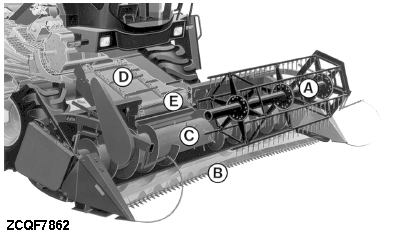

Components:

Cutting Platform

A. Reel

B. Cutterbar

C. Auger

Elevator

D. Conveyor

E. Floating roller
