Cutting and Harvesting Unit-Cutting Platform Installation

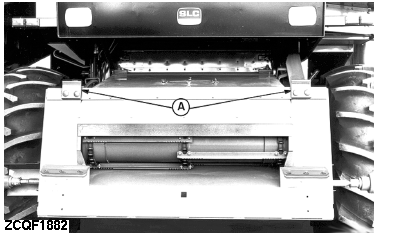

Lower the feeder house and move inward or remove the two bolts (B) on both sides of the feeder house. Slowly drive the combine up and move the two supports (A) into the header.

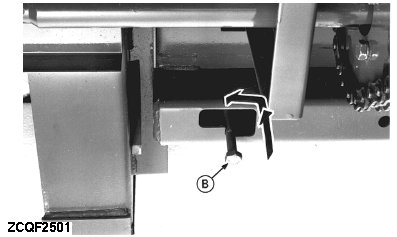

Move the two bolts (B) which should fit into the corresponding locations in the header as shown in the figure.
