Opening the Fan Shield

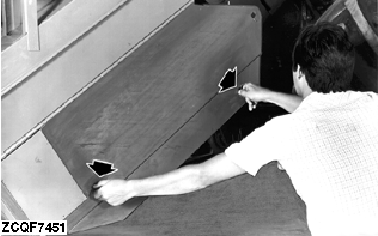

Turn the latches and lift the shield.

ZCQF7451

ZX,OMSLC005409 -19-02JUN96-1/2

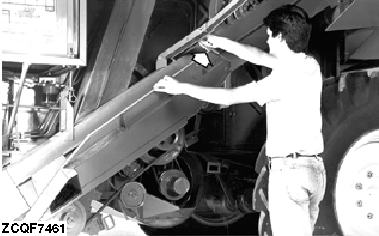

Secure the cover by means of the spring.

ZCQF7461

ZX,OMSLC005409 -19-02JUN96-2/2
