Opening the Header Drive Shield

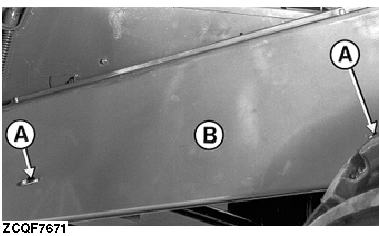

Turn latches (A).

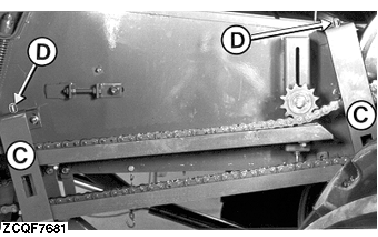

Raise shield (B) by loosening the alignment bolts (D).

ZCQF7671

ZCQF7681

ZX,OMSLC005415 -19-31JAN96-1/1
