Checking Engine Crankcase Oil Level

To prevent interruption of lubrication oil circulation when the engine is in an inclined position, never allow oil to drop below minimum oil level.

IMPORTANT: It is vital to maintain the engine oil at the correct level to ensure a long service life. Check oil level with combine standing on level ground.

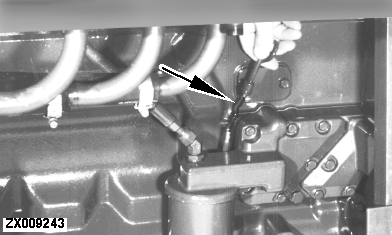

Before removing dipstick, clean surrounding area thoroughly.

Check engine crankcase oil level after every 10 hours of operation.

Oil level should be between upper and lower marks on dipstick.
