Emptying Fuel Filter

CAUTION: Always remove ignition key before performing maintenance work on fuel filter. Avoid fire hazards!

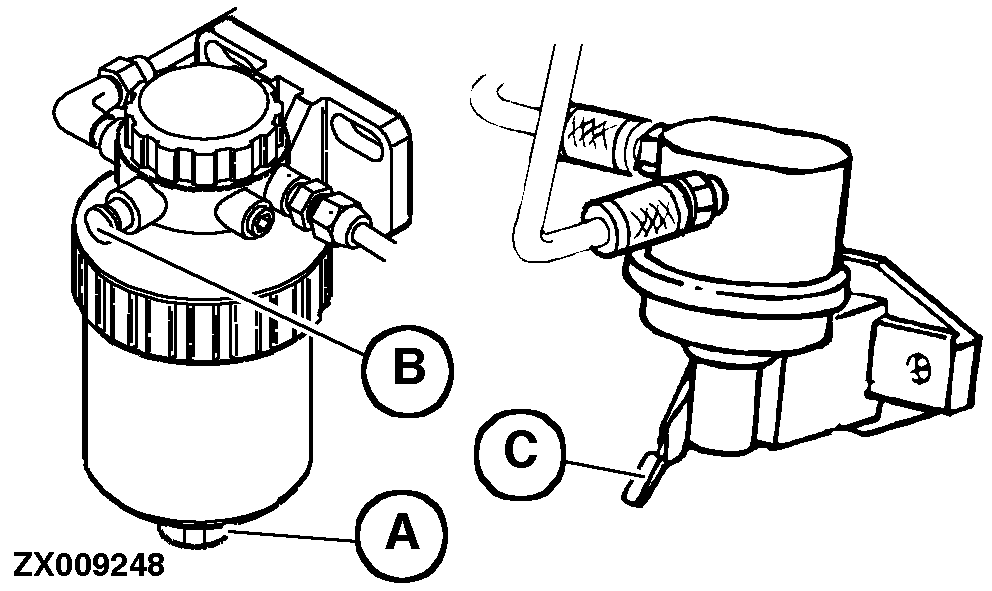

Slacken off drain screw (A).

Open bleed screw (B).

Retighten drain screw as soon as the water and sediment deposits have drained off.

Actuate pump lever (C), until the fuel filter has been completely purged of air.

Retighten bleed screw.

ZX,OMSLC005452 -19-01MAY96-1/1
