Engine Coolant

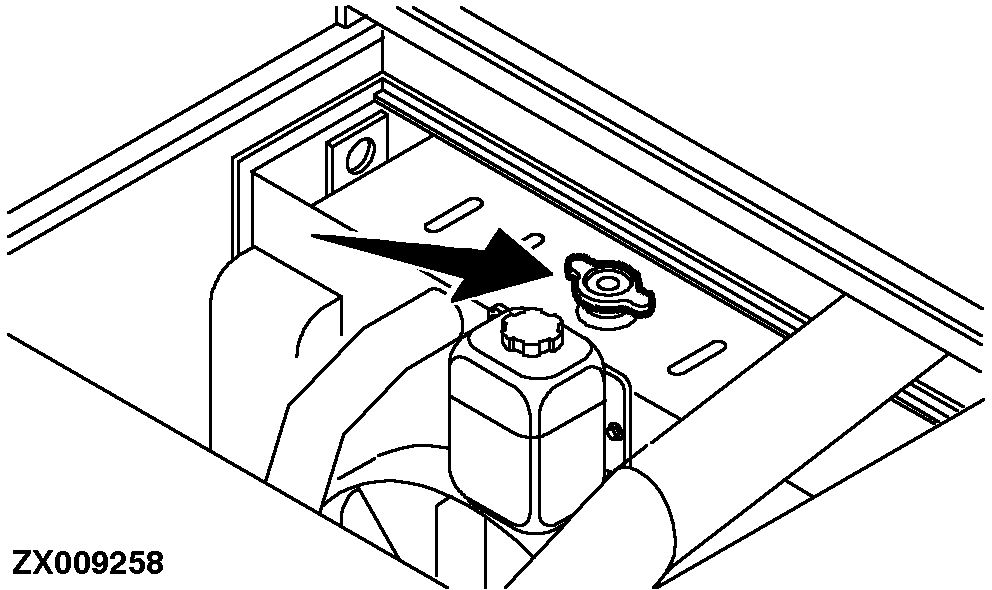

CAUTION: Danger of scalding. Do not loosen or remove the radiator filler cap when coolant temperature is near or above boiling point. Always loosen the cap slightly to relieve pressure before removing cap completely.

Add coolant only when the engine is shut off.

When the engine is cool, the coolant level should be up to the "COLD" mark.

IMPORTANT: Regardless of the season, use only John Deere COOL-GARD in the cooling system. Drain cooling system and refill with fresh coolant every 2 years.

Check condition of coolant mixture before the winter season. Coolant should protect engine against frost down to -36°C (-35°F).

Never use any cooling system sealing additives.

ZX,OMSLC005455 -19-01MAY96-1/1
