Combine Harvester Computer

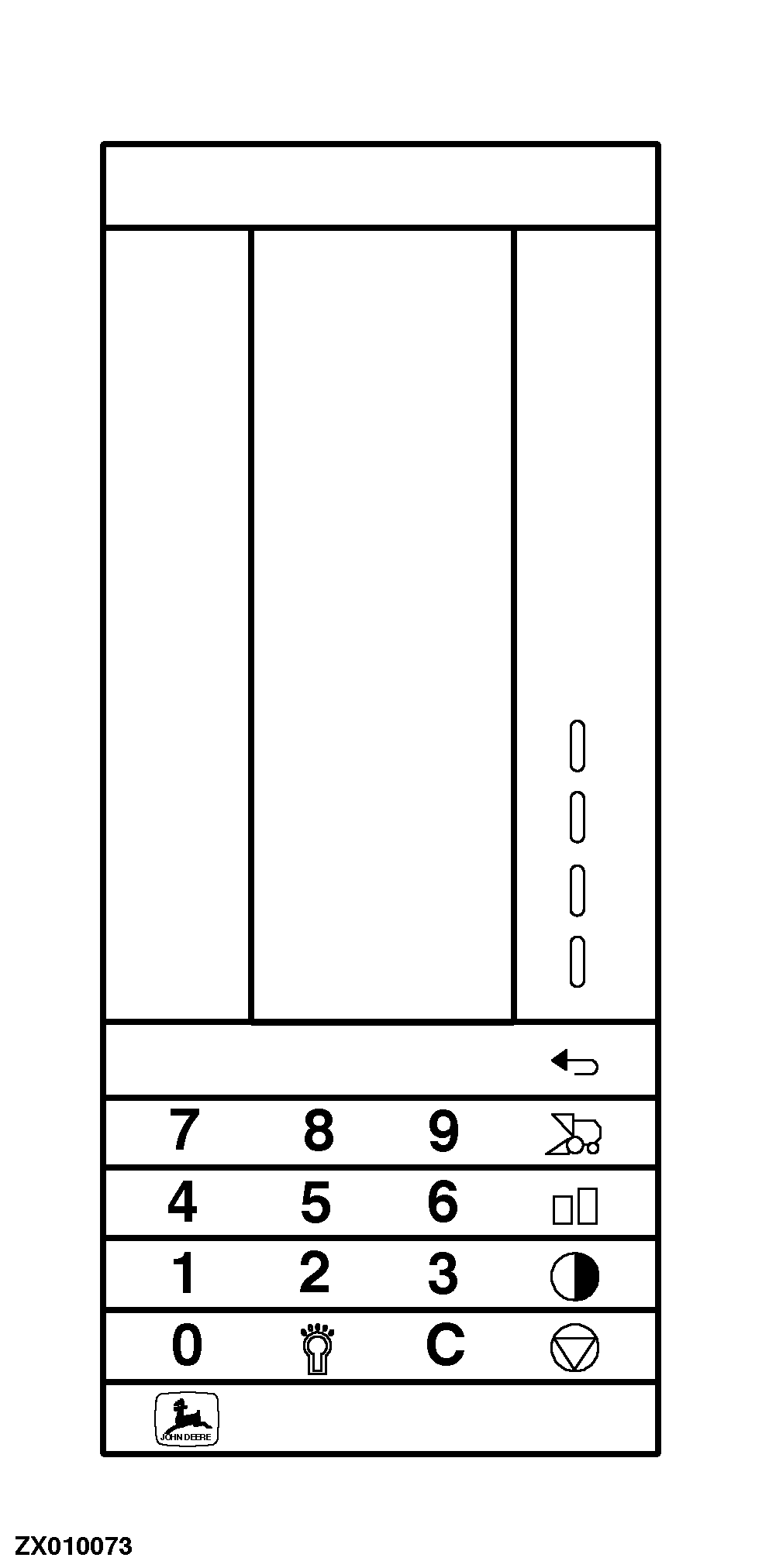

The computer is attached to the right-hand cab post and has 3 main functions:

1- Low shaft speed monitoring of:

• Cleaning fan shaft
• Straw walker shaft
• Grain elevator
• Tailings elevator
• Straw chopper rotor shaft

2- Harvest performance monitor with sensors in both exterior straw walkers and behind the sieves.

3- Area counter with option for setting partial header width.

The functions of the computer are divided into a main menu (split in two pages) and the following 5 sets of functions:

• Operation
• Encode
• Data/Delete
• Language
• Test

NOTE: Basically, the computer menu system is built up as a book which you can flip through.

Each of the above function sets has several sub functions. Each function set with sub functions will be described one by one on the following pages.

ZX,OMSLC007282 -19-20NOV96-1/1
