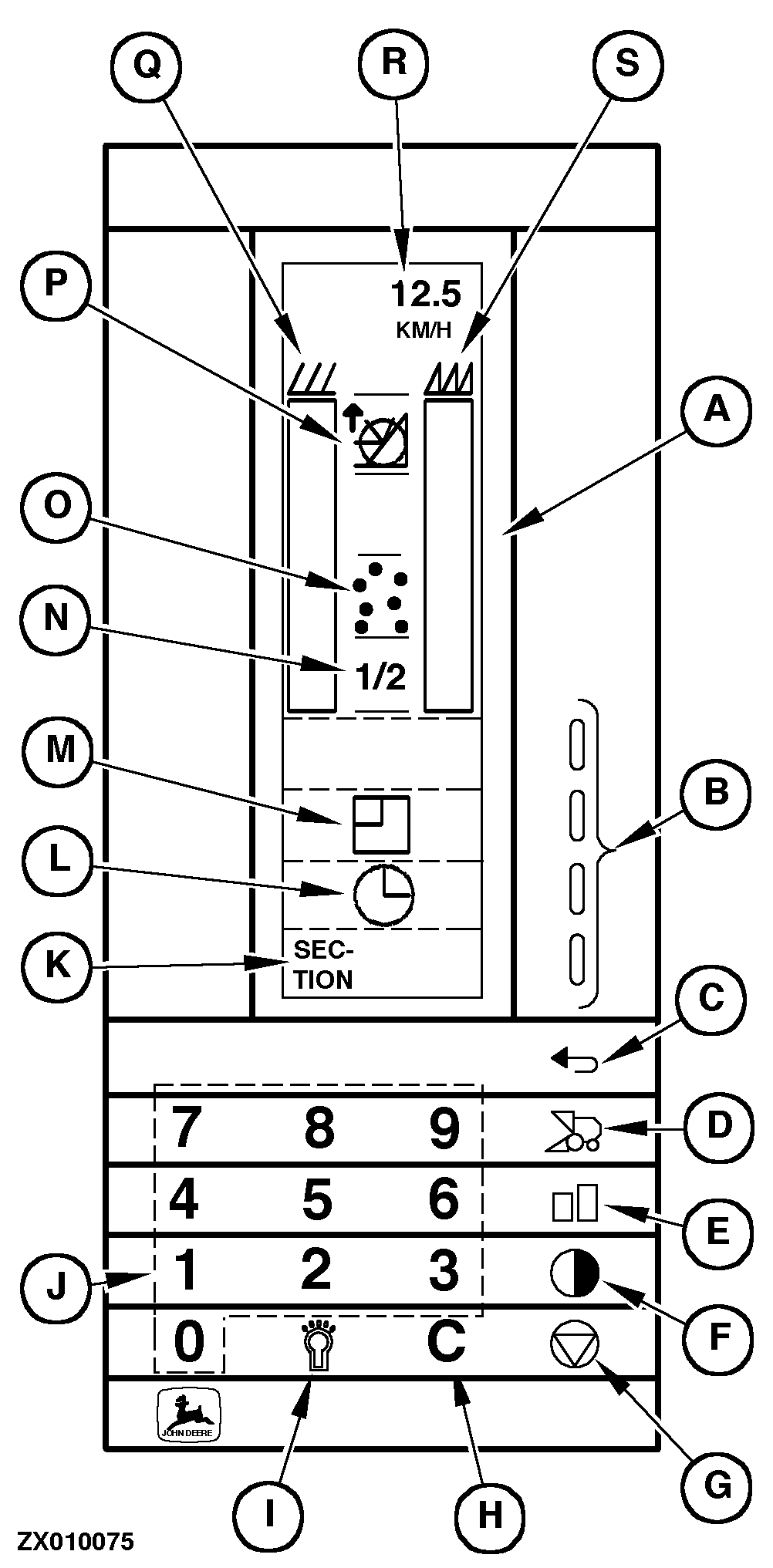

Combine Harvester Computer Monitor Description
A-Screen Display
B-Function Keys
C-Return Key
D-RPM Control Key
E-Zoom Display Key
F-Contrast Key
G-Undefined Key (Not Used)
H-Delete Key
I-Background Light Key
J-Numeric Keys
K-Header Width (Section) Function1
L-Time Function Pictogram1
M-Area Function Pictogram1
N-Reduced Header Width Display1
O-Grain Loss Warning Pictogram1
P-Area Counter Stopped Warning Pictogram (Feeder House Raised)1
Q-Sieve Loss Bar Graph
R-Function Information Display
S-Straw Walker Loss Bar Graph
|
