Operating Combine Harvester Computer

This function allows you to control the performance (thanks to the area and time functions) and the grain loss (thanks to the bar graphs and warning pictograms) during combine operation.

Proceed as follows:

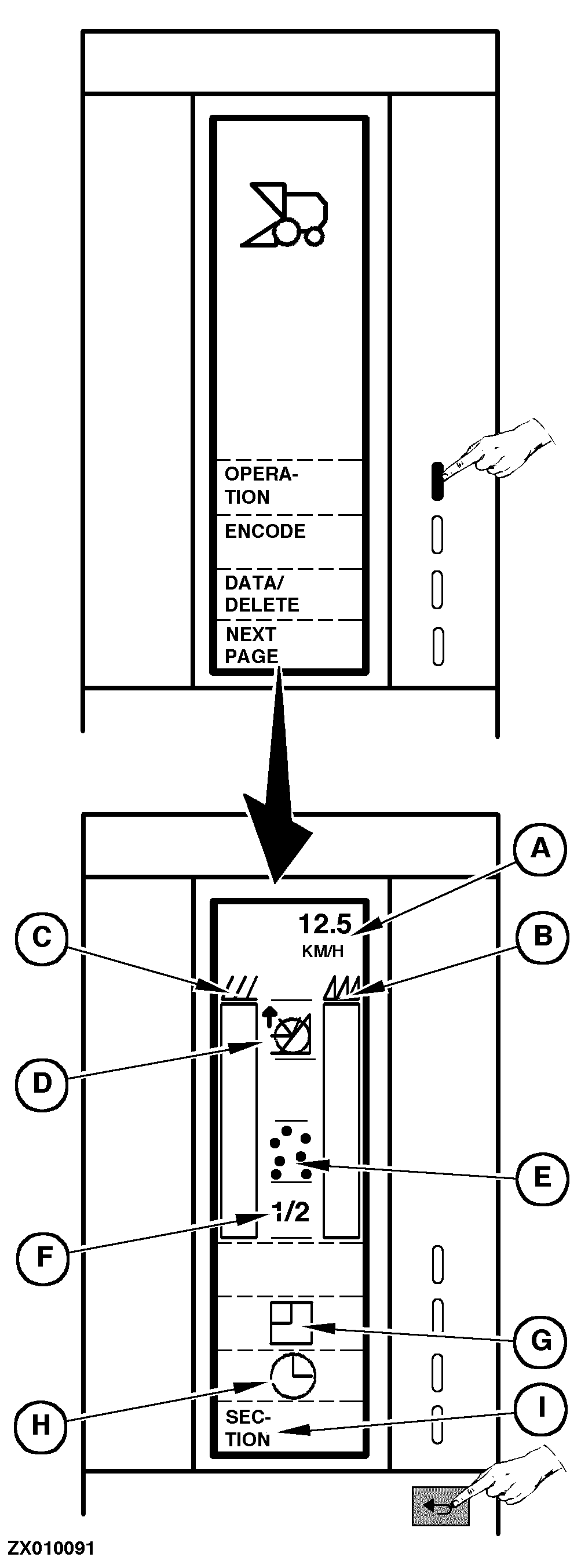

Switch ON monitor (see "Switching ON Combine Harvester Computer" in this Section), then go to the "Main Menu" page and press "Operation" key as shown.

A new page is displayed showing the following information:

The "Area" or "Time" function information displayed in (A).

The straw walker loss and sieve loss bar graphs (B) and (C). This reading is the most important and therefore it takes up relatively much space. The bar graphs can be further enlarged by using "Zoom" key (see "Zoom Display Key" in this Section).

Between the bar graphs the following warning pictograms are displayed:

Area counter stopped warning pictogram (D) (Feeder house raised). See "Accessing Area Functions" in this Section.

Grain loss warning pictogram (E), if loss warning is activated (see "Encoding Stop Warnings" in this Section).

Reduced header width display (F). See "Accessing Area Functions" in this Section.

A-Function Information Display
B-Straw Walker Loss Bar Graph
C-Sieve Loss Bar Graph
D-Area Counter Stopped Warning Pictogram (Feeder House Raised)
E-Grain Loss Warning Pictogram
F-Reduced Header Width Display
G-Area Function Pictogram
H-Time Function Pictogram
I-Header Width (Section) Function

ZX,OMSLC007297 -19-22NOV96-1/2

Below the bar graphs the three following operation functions are displayed:

Area functions (G). See "Accessing Area Functions" in this Section.

Time functions (H). See "Accessing Time Functions" in this Section.

Header width (section) function (I). See "Accessing Area Functions" in this Section.

Press "Return" key to return to the "Main Menu" page.
