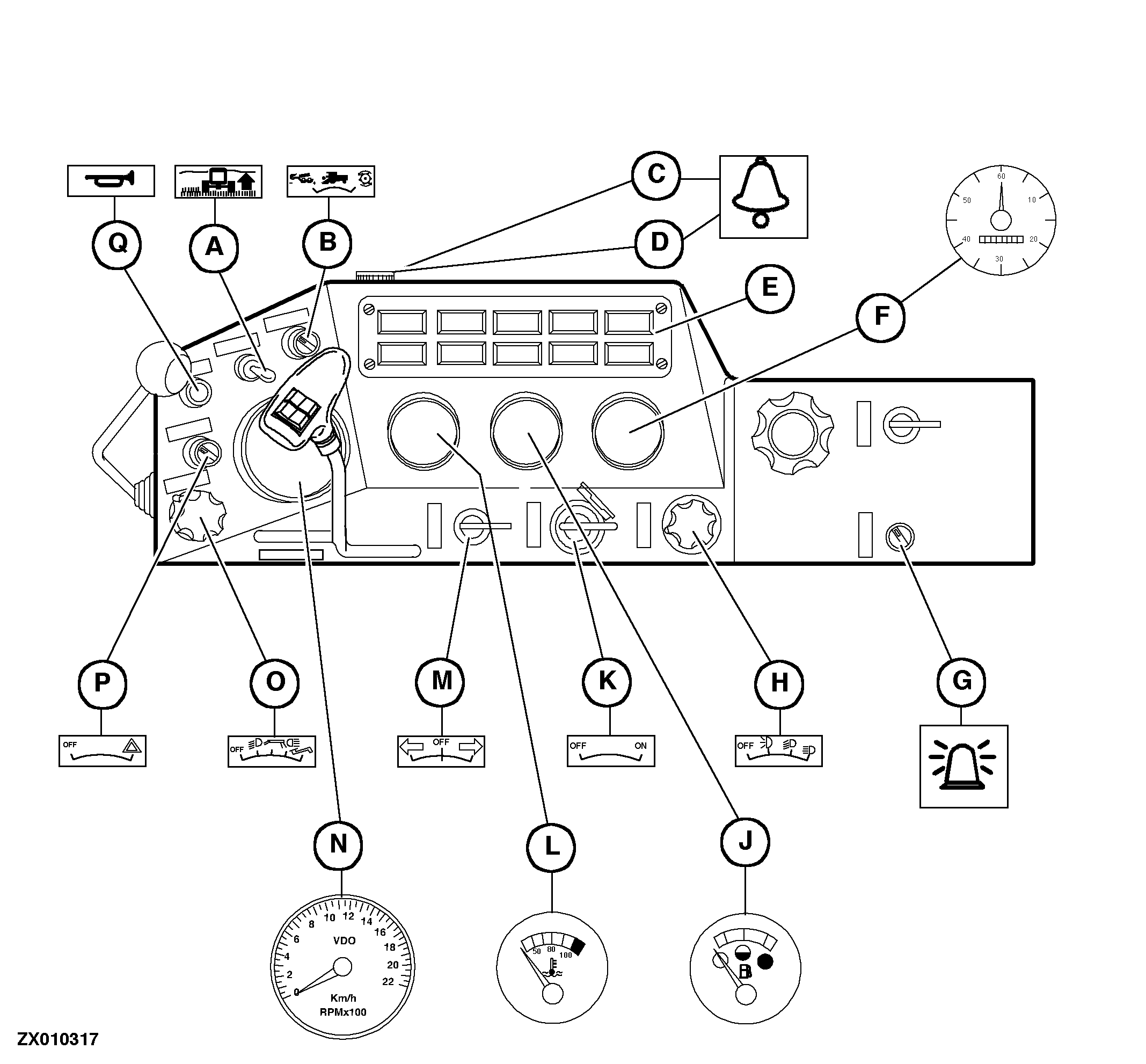

A-Road Safety Switch
B-Speedometer/Cylinder And Fan Tachometer Switch
C-Engine Coolant Temperature Alarm
D-Parking Brake Alarm
|
E-Indicator Lights I
F-Hourmeter
G-Switch for beacon lights
H-Driving Light/Clearance Light Switch
J-Fuel Gauge
|
K-Ignition Switch
L-Engine Coolant Temperature Gauge
M-Turn signal switch
N-Speedometer/Cylinder And Fan Tachometer
|
O-Work Light, Grain Tank Light, Cab Light and Unloading Auger Light Switch
P-Flasher Switch
Q-Horn Button
|
