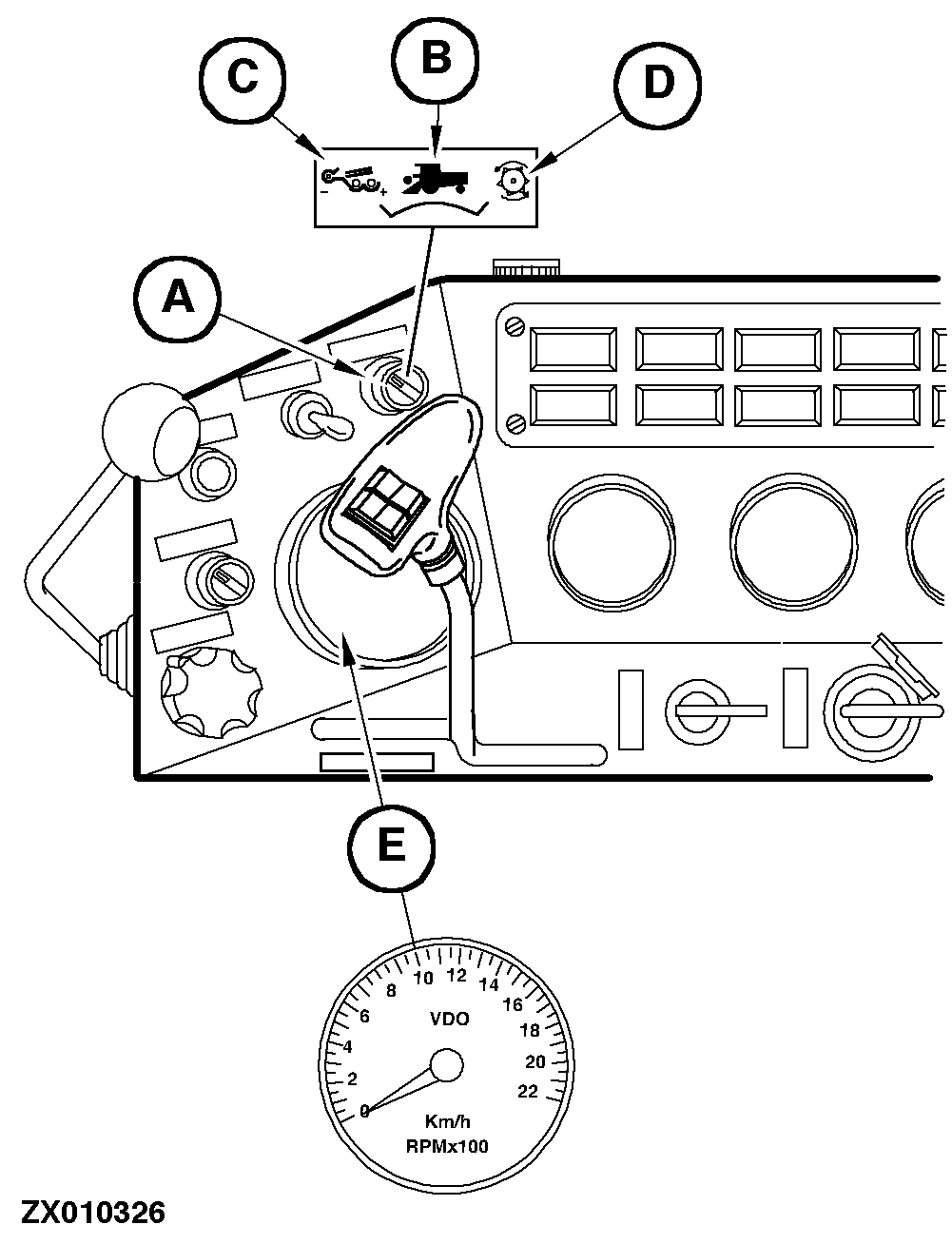

Speedometer/Cylinder and Fan Tachometer Switch

Rotate switch (A) to the desired speed position. Speed is displayed with tachometer (E).


A-Switch
B-Ground Speed Position
C-Fan Speed Position
D-Cylinder Speed Position
E-Tachometer

ZX010326

ZX,OMSLC007422 -19-01DEC96-1/1
