Indicator Lights II

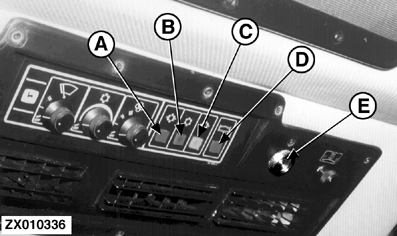

The four warning lights indicate the following:

Air conditioning high pressure (A) exceeding 2100 kPa (21 bar; 306 psi).

Air conditioning switched ON (B).

Air conditioning low pressure (C) less then 100 kPa (1 bar; 15 psi).

IMPORTANT: If indicator (A) or (C) comes on, switch off conditioning system and remedy the fault.

Grain tank full (D).

NOTE: Buzzer (E) is also activated when grain tank indicator (D) comes on.

A-High Pressure (Red Light)
B-Air Conditioning On (Green Light)
C-Low Pressure (Yellow Light)
D-Grain Tank Full (Red Light)
E-Buzzer

ZX,OMSLC007437 -19-01DEC96-1/1
