Before Starting the Engine

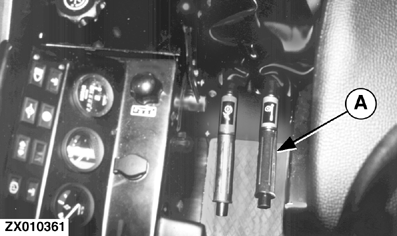

The parking brake (A) must be applied.

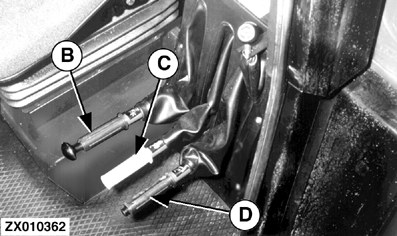

Disengage header, separator and unloader levers (B)-(C)-(D).

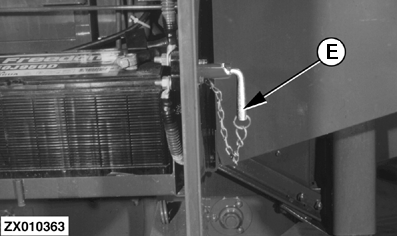

Turn battery safety switch (E) to "engaged" position.

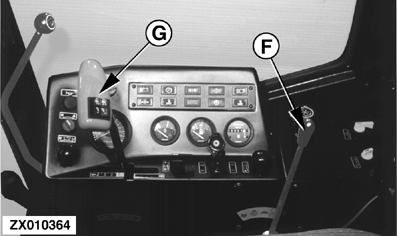

Move the throttle lever (F) to the slow idle position (turtle).

Move forward/reverse lever (G) to neutral position, as otherwise engine cannot be started.


A-Parking Brake Applied
B-Header Drive Disengaged
C-Separator Drive Disengaged
D-Unloader Drive Disengaged
E-Battery Safety Switch Engaged
F-Throttle In Slow Idle Position
G-Forward/Reverse Lever In Neutral Position

ZX010361
ZX010362
ZX010363
ZX010364

ZX,OMSLC007460 -19-14DEC96-1/1
